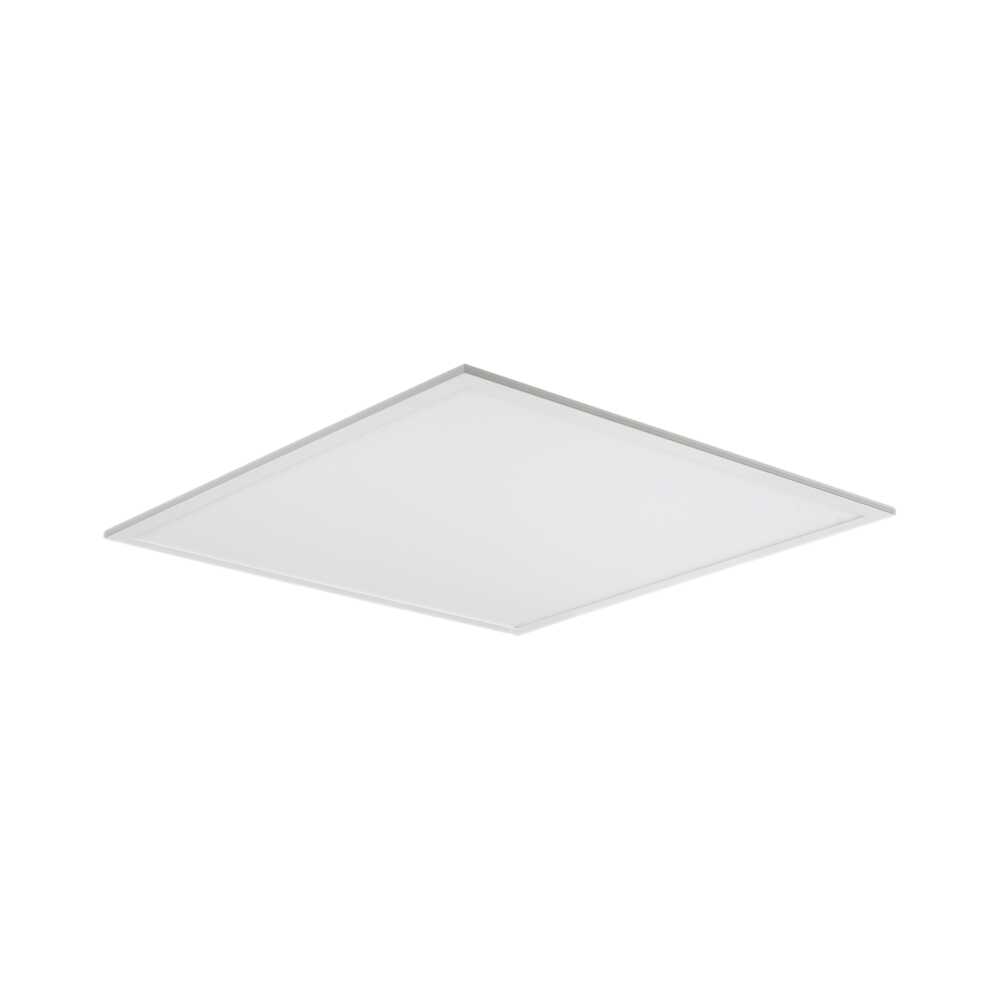

PANEL S9774 - 24/40W
LED panel, LOW power

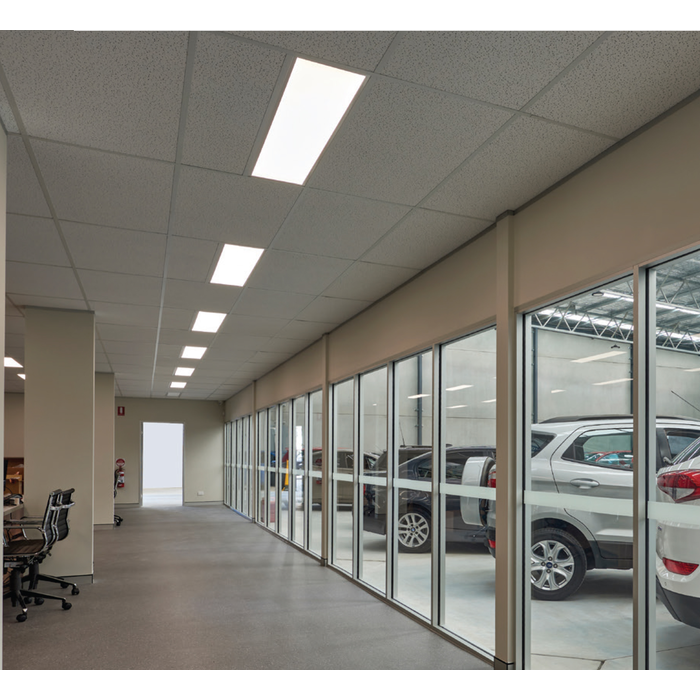

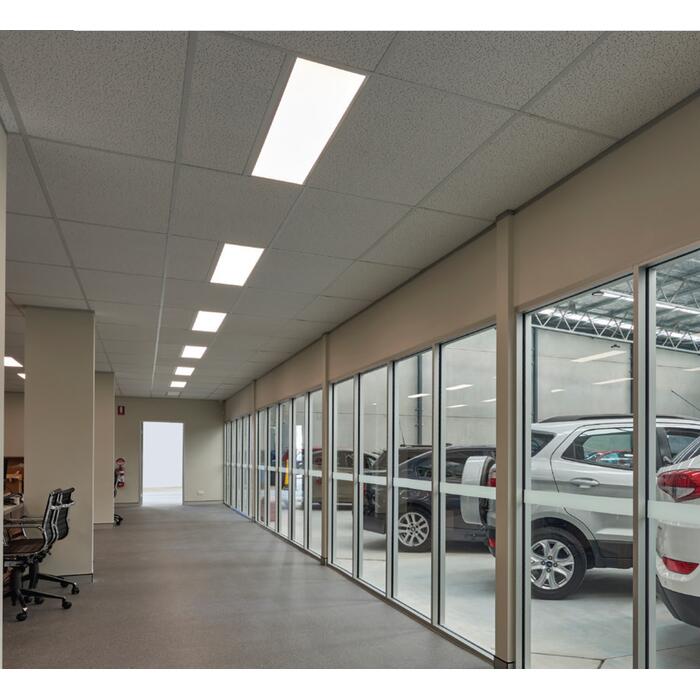

Application
Designed for commercial and office space lighting tasks.
Design Specifications
Extruded aluminium profile with high performance optical design, suitable for a range of installation types.
White powder coated finish
High efficiency LED optics, CRI > 80
Remote constant current non-dimmable LED driver PF>0.9, complete with flex and plug
CCT 5700K , 24 watt systems
Recessed frames, surface mount kits and suspended wire kits available
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, (excluding S9774/612) DALI / DSI
-
-
-
-
-
DAYLIGHT5700K
-
-
-
-
-
-

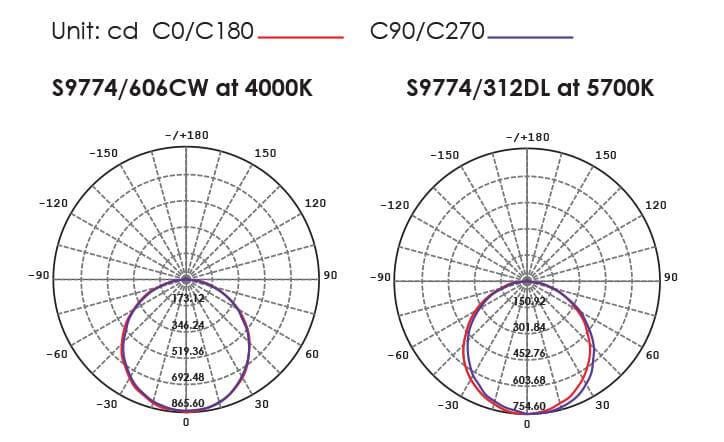

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Dim Mass IPART REES VEET
Model No. S9774/606DL Add to Enquiry Add Remove Remove Input Voltage 240 Power 24 Lumens 2400 CCT 5700 CRI 80 Beam Angle 100 Dim 595(L) x 595(W) x 9(H) Mass 2.76 IPART YES REES YES VEET YES
Model No. S9774/312DL Add to Enquiry Add Remove Remove Input Voltage 240 Power 24 Lumens 2400 CCT 5700 CRI 80 Beam Angle 100 Dim 1195(L) x 295(W) x 9(H) Mass 3.00 IPART YES REES YES VEET YES
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
